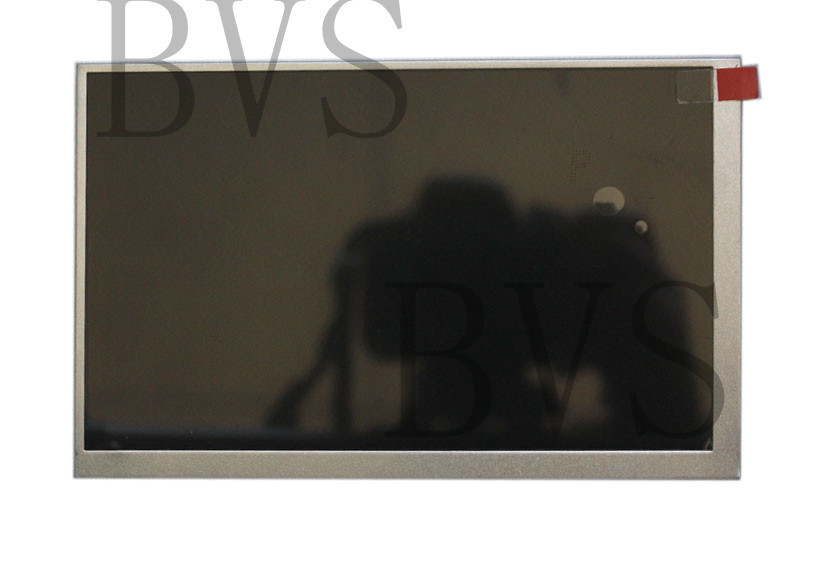

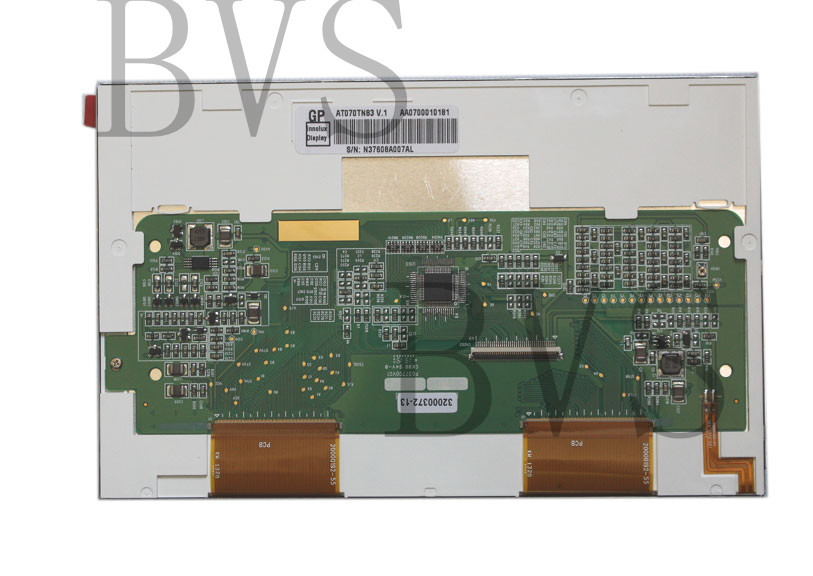

AT070TN83 V.1
Brand: CHIMEI INNOLUX
Panel Model: AT070TN83 V.1
Interface: TTL
Panel size: 7
Resolution: 800X3(RGB)X480
Brightness: 300
Contrast Ratio: 500:1
Display Color: 16.7M(8-bit)
Back light: WLED
Brand: group a (INNOLUX)
Panel type: AT070TN83 v. 1
Panel type: a - Si TFT - LCD, the LCD panel
Panel size: 7.0 "(inches)
Resolution: 800 x 480 (RGB)
Display mode: TN, often white display, transmission type
Surface treatment: spray surface
Panel brightness: 300 CD/m2
For than degrees: 500:1 (Typ.)
Display color: 262 k (6 - bit)
Response time: 10/15 (Typ.) (Tr/Td)
Visual Angle: 70/70/50/70 (Typ.) (CR 10 or higher) (left/right/up/down)
Lamp type: WLED
The signal type: the TTL (1 ch, 6 - bit)
Panel voltage: 3.3 V (Typ.) (VCC)
Application products: MP4, PMP, digital photo frame, portable DVD players
Distance: 0.0642 (W) x 0.1790 (H)

Signal output: support VGA/AV

Note: the above profile information is for reference only, all data will be subject to PDF specification.
