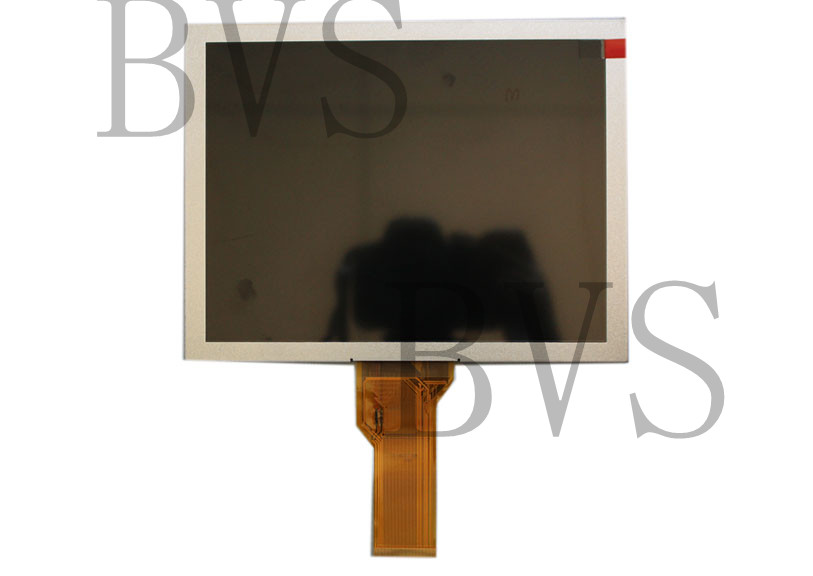

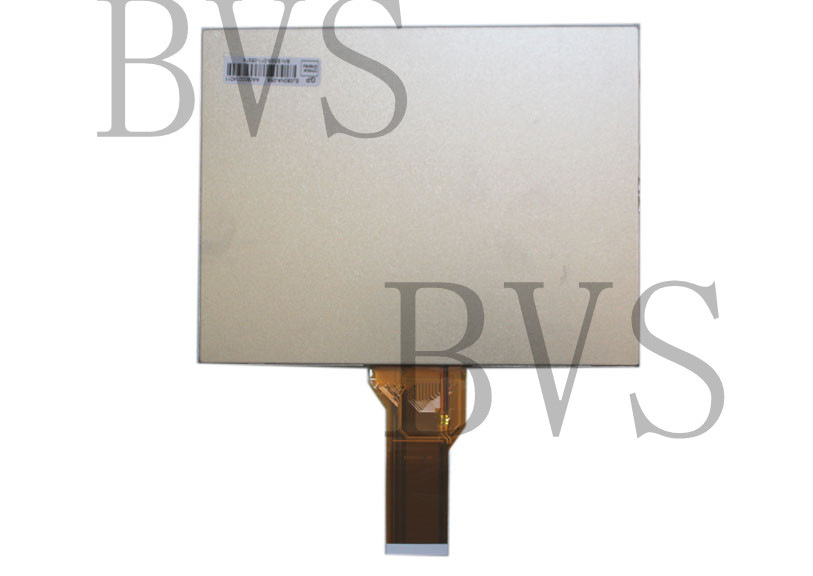

EJ080NA-05B

Brand：	CHIMEI INNOLUX
Panel Model：	EJ080NA-05B
Interface：	TTL
Panel size：	8
Resolution：	800X3(RGB)X600
Brightness：	250
Contrast Ratio：	500:1
Display Color：	16.7M(8-bit)
Back light：	WLED

Brand: group a (INNOLUX)
Panel type: EJ080NA - 05 b
Panel type: a - Si TFT - LCD, the LCD panel
Panel size: 8.0 "(inches)
Resolution: 800 x 600 (RGB)
Display mode: TN, often white display, transmission type
Surface treatment: spray surface
Panel brightness: 250 CD/m2
For than degrees: 500:1 (Typ.)
Display color: 262 k / 16.2 M (6 - bit / - bit + Dithering)
Response time: 10/15 (Typ.) (Tr/Td)
Visual Angle: 70/70/50/70 (Typ.) (CR 10 or higher) (left/right/up/down)
Lamp type: 3 s9p WLED
The signal type: the Parallel RGB (1 ch, 6/8 - bit)
Panel voltage: 16.0/3.3/10.4 / - 7.0 V (Typ.) (VCC/AVDD/VGH/VGL)
Application products: car audio, digital photo frame, portable DVD, industry
Distance: 0.0642 (W) x 0.1790 (H)

Panel brand: chi mei (CHIMEI INNOLUX)
Panel type: EJ080NA - 05 b
Panel type: a - Si TFT - LCD, the LCD panel
Application products: digital photo frame, portable DVD players
Working temperature: - 20 ~ 70 ° C
Storage temperature: - 30 ~ 80 ° C
Note: 2 in 1 FPC, DE/SYNC mode selectable
Panel size: 8 inches
Resolution: 800 x 600 (RGB)
Wide high than: 4:3 (wide, high)
Pixel: RGB Vertical Stripe
Point between the distance: 0.0675 x 0.2025 mm (transverse * vertical)
Pixel distance: 0.2025 x 0.2025 mm (transverse * vertical)
Panel weight: TBD
Display area: 162.0 x 121.5 mm (transverse * vertical)
Viewing area: 183.0 x 124.3 mm (transverse * vertical)
Appearance of size: 183.0 x 141.0 mm (transverse * vertical)
Appearance of size: 5.6 mm (thickness)
Touch touch screen: the touch screen (projected capacitive)
Display mode: MVA, often black display, through reflection
Panel brightness: 250 CD/m2 (Typ.)
For than degrees: 1:1 (Typ.) (tem)
Display color: 262 k / 16.7 M (6 - bit / - bit + Hi - FRC)
Color saturation: 50%
Response time: 25 (Typ.) (Tr + Td) (ms)
Visual Angle: 75/75/70/75 (Typ.) (CR 10 or higher) (left/right/up/down)
The best Angle of view: 6 o 'clock
White color: X: 0.310;Y: 0.330
White field changes: 1.33/1.43 (Typ. / Max.) (9 points)
Sweep frequency: 60 hz
Reverse scan: flip (horizontal/vertical)
Total power consumption: 2.138 W
T - CON: Embedded T - CON
Bulb location: side into the light source
Light type: no backlighting
The number of tubes: 3 s9p
Tube shape: array
Light life: 20 k (Min.) (h)
Single lamp voltage: 9.3/10.2 V (Typ. / Max.)
Single lamp current: 180 + 18 ma
Tube total power: 1.782 W (Typ.)
Interface type: Included in signal interface
Backlight circuit: it contains the LED driver
Signal forms: the Parallel RGB
Small signal class: an LVDS (4 ch, 10 - bit)
Interface definition: p1c8b DRGB - 50-115 - a
Panel voltage: 3.3 V (Typ.)
Panel current: 0.2/5.5/32.0/0.2 mA (Typ.) (ICC/IAVDD/IGH/IGL)
Panel power: 0.356 W (Typ.)
Signal voltage: 0 or less VIL VCC 0.3 or less;0.7 VCC VIH VCC or less or less
Interface type: FPC
Interface pin pitch: 0.5 mm
The number of interfaces: 1 PCS
Interface foot: 50 pins
