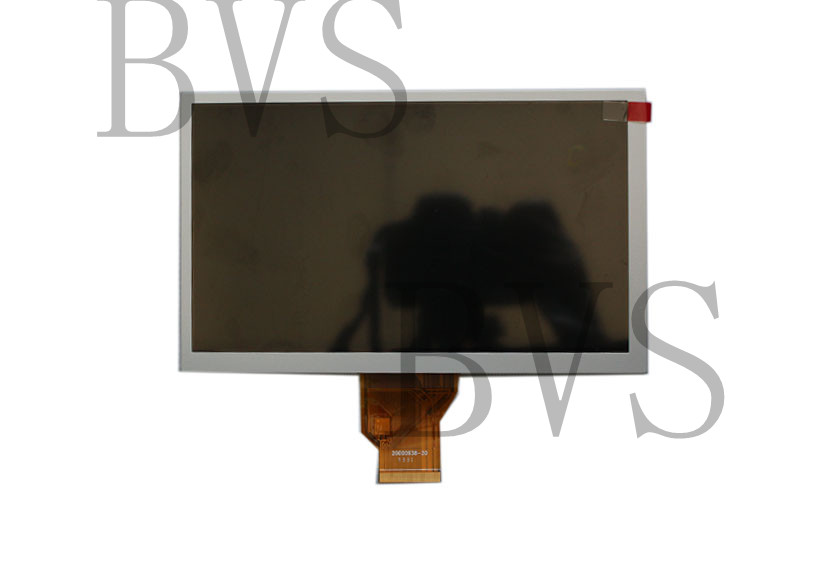

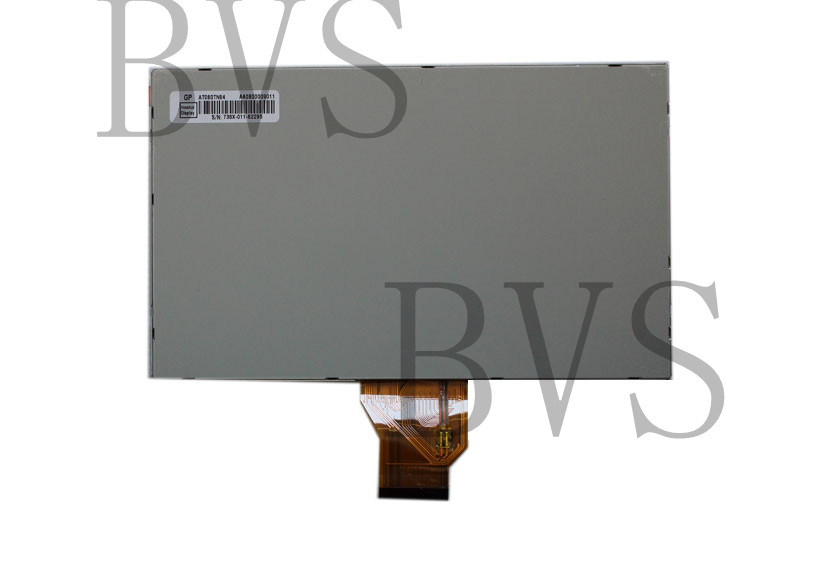

AT080TN64

Brand：	CHIMEI INNOLUX
Panel Model：	AT080TN64
Interface：	TTL
Panel size：	8
Resolution：	800 X 3(RGB) X 480
Brightness：	450
Contrast Ratio：	500:1
Display Color：	16.7M(8-bit)
Back light：	WLED

Brand: group a (INNOLUX)
Panel type: AT080TN64
Panel type: a - Si TFT - LCD, the LCD panel
Panel size: 8.0 "(inches)
Resolution: 800 x 480 (RGB)
Display mode: TN, often white display, transmission type
Surface treatment: spray surface
Panel brightness: 450 CD/m2
For than degrees: 500:1 (Typ.)
Display color: 262 k / 16.2 M (6 - bit / - bit + Dithering)
Response time: 10/15 (Typ.) (Tr/Td)
Visual Angle: 70/70/50/70 (Typ.) (CR 10 or higher) (left/right/up/down)
Lamp type: 3 s9p WLED
The signal type: the Parallel RGB (1 ch, 6/8 - bit)
Panel voltage: 16.0/3.3/10.4 / - 7.0 V (Typ.) (VCC/AVDD/VGH/VGL)

Application products: car audio, digital photo frame, portable DVD, industry

Note: the above profile information is for reference only, all data will be subject to PDF specification.

Panel brand: group a (INNOLUX)
Panel type: AT080TN64
Panel type: a - Si TFT - LCD, the LCD panel
Application products: car display
Working temperature: - 30 ~ 85 ° C
Storage temperature: - 30 ~ 85 ° C
Panel size: 8.0 inches
Resolution: 800 x 480 (RGB)
Wide high than: 16:9 (wide, high)
Pixel: RGB Vertical Stripe
Point between the distance: 0.0736 x 0.2070 mm (transverse * vertical)
Pixel distance: 0.2208 x 0.2070 mm (transverse * vertical)
Panel weight: 251 g (Typ.)
Surface treatment: spray surface
Display area: 176.64 x 99.36 mm (transverse * vertical)
Viewing area: 180.1 x 103.4 mm (transverse * vertical)
Appearance of size: 192.8 x 116.9 mm (transverse * vertical)
Appearance of size: 6.3 + / - 0.3 mm (thickness)
Touch the touch screen: no
Display mode: TN, often white display, transmission type
Panel brightness: 450 CD/m2 (Typ.)
For than degrees: 500:1 (Typ.) (tem)
Display color: 262 k (6 - bit)
Color saturation: - 1%
Response time: 10/15 (Typ.) (Tr/Td) (ms)
Visual Angle: 80/80/80/80 (Typ.) (CR 10 or higher) (left/right/up/down)
The best Angle of view: 6 o 'clock
White color: X: 0.310;Y: 0.330
White field changes: 1.33/1.43 (Typ. / Max.) (9 points)
Reverse scan: flip (horizontal/vertical)
T - CON: Embedded T - CON
Bulb location: side into the light source
The light source type: WLED
The number of tubes: 3 s12p
Tube shape: array
Light life: 20 k (Min.) (h)
Single lamp voltage: 600 v (Typ.)
Single lamp current: 240 + 24 ma
Tube total power: 2.232 W (Typ.)
Interface type: Included in signal interface
Backlight circuit: no
Signal forms: the Parallel RGB
Signal small class: the Parallel RGB (1 ch, 6 - bit)
Interface definition: p1c8b DRGB - 50-115 - a
Panel voltage: 5/5/15 / - 10 v (Typ.) (VCC/AVDD/VGH/VGL)
Panel current: 4.0/20.0/0.2/0.2 mA (Typ.) (DIDD/AIDD/IGH/IGL)
Panel power: 0.226 W (Typ.)
Signal voltage: 0 or less VIL DVDD 0.3 or less;0.7 DVDD VIH DVDD or less or less
Interface type: FPC
Interface pin pitch: 0.5 mm
The number of interfaces: 1 PCS
Interface foot: 50 pins

Note: the above profile information is for reference only, all data will be subject to PDF specification.
