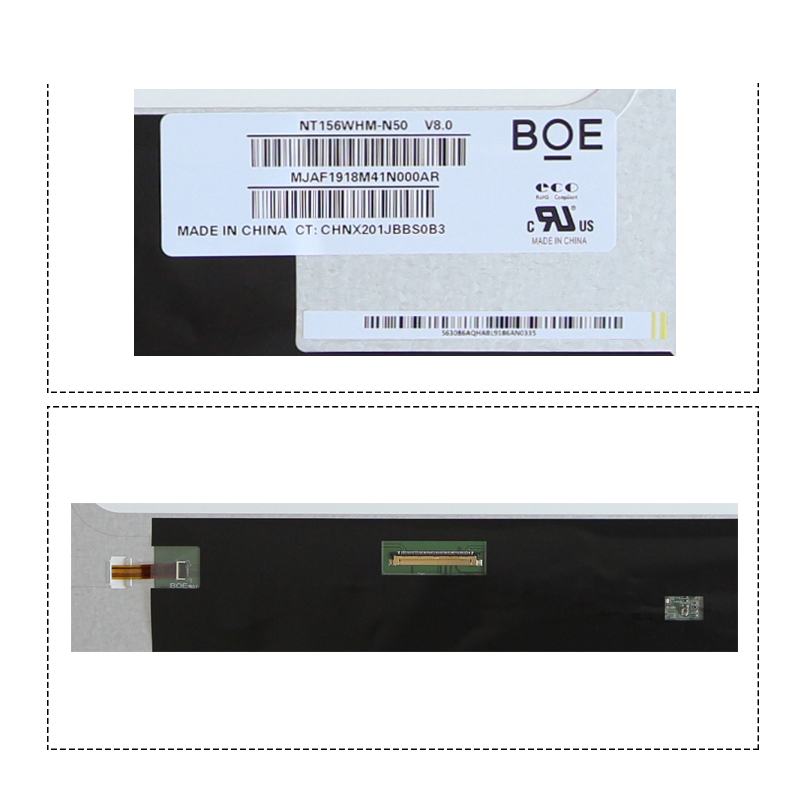

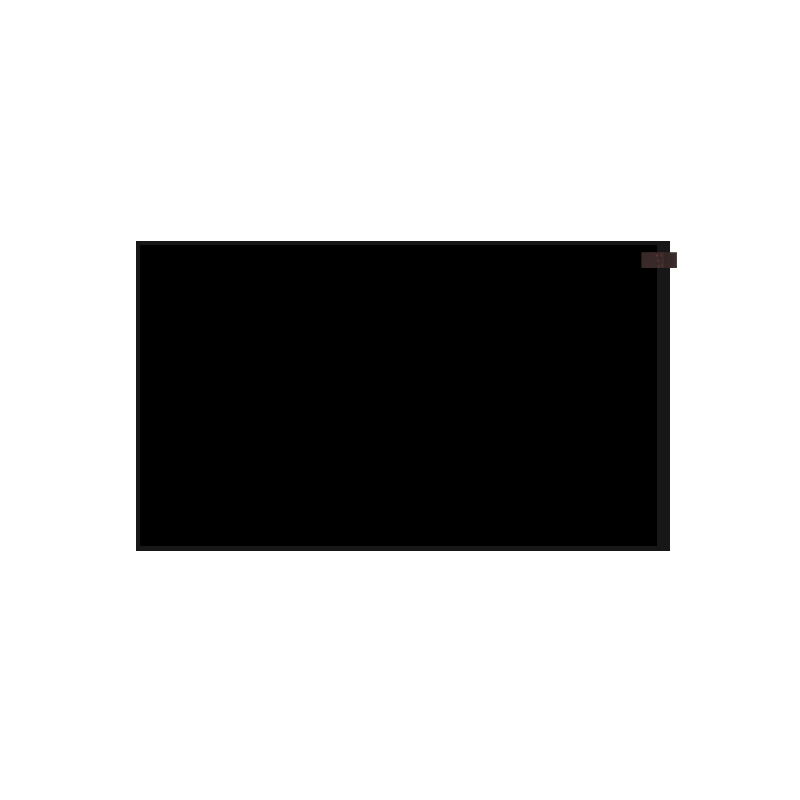

NT156WHM-N50

Panel Brand: (BOE)
Panel model: NT156WHM-N50 (BOE06D3)
Panel size: 15.6 inches
Panel type: A-SI TFT-LCD, LIQUID crystal module
Number of pixels: 1366(RGB)×768, WXGA
Pixel layout: RGB vertical bar
Display area: 344.232(width)×193.536(height) mm
Appearance size: 359.5(width)×223.8(height)× 5.5(thickness) mm
Surface treatment: Mirror (Haze 0%)
Panel brightness: 220 CD /m (Typ.)
Ratio: 500:1 (Typ.) (TM)
Visual Angle: 45/45/20/40 (Typ.)(CR≥10) Left/right/up/down

Panel Brand: (BOE)
Panel model: NT156WHM-N50 (BOE06D3)
Panel size: 15.6 inches
Panel type: A-SI TFT-LCD, LIQUID crystal module
Number of pixels: 1366(RGB)×768, WXGA
Pixel layout: RGB vertical bar
Display area: 344.232(width)×193.536(height) mm
Appearance size: 359.5(width)×223.8(height)× 5.5(thickness) mm
Surface treatment: Mirror (Haze 0%)
Panel brightness: 220 CD /m (Typ.)
Ratio: 500:1 (Typ.) (TM)
Visual Angle: 45/45/20/40 (Typ.)(CR≥10) Left/right/up/down
Working mode: TN, usually white display, transmission type
Recommended Perspective: 6 o'clock
Reaction time: 12 (Typ.)(Tr+Td)
Display color: 262K, 45% (CIE1931)
Light source type: 9S3P WLED, 15K hours, including LED driver
Working frequency: 60Hz
Appearance style: Thick screen (PCBA bending, thickness ≥5.2mm)
Panel application: Notebook
Signal interface: LVDS (1 CH, 6-bit), 40 pins, terminals
Drive screen voltage: 3.3V (Typ.)
Operating temperature: 0 ~ 50 °C;
Storage temperature: -20 ~ 60 °C
