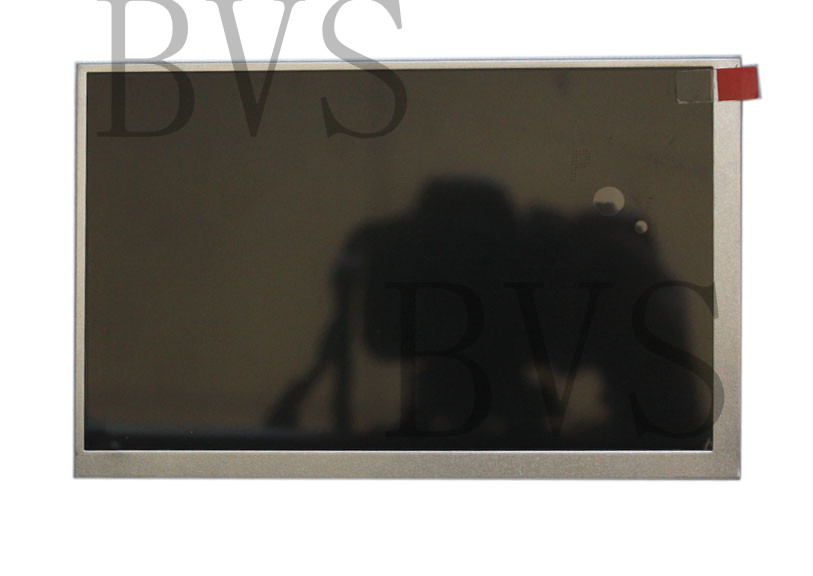

ZJ070NA-01P
Brand: CHIMEI INNOLUX
Panel Model: ZJ070NA-01P
Interface: TTL
Panel size: 7
Resolution: 1024 X 3(RGB) X 600
Brightness: 500
Contrast Ratio: 500:1
Display Color: 16.7M(8-bit)
Back light: WLED
Brand: chi mei (CHIMEI INNOLUX)
Panel type: ZJ070NA - 01 p
Panel type: a - Si TFT - LCD, the LCD panel
Panel size: 7.0 "(inches)
Resolution: 1024 x 600 (RGB)
Display mode: TN, often white display, transmission type
Surface treatment: antireflective treatment
Panel brightness: 500 CD/m2
For than degrees: 700:1 (Typ.)
Display color: 262 k / 16.7 M (6 - bit / - bit + Dithering)
Response time: 10/10 (Typ.) (Tr/Td)
Visual Angle: 75/75/70/75 (Typ.) (CR 10 or higher) (left/right/up/down)
Sweep frequency: 60 hz
Lamp type: 3 s6p WLED
The signal type: an LVDS (1 ch, 8-bit)
Panel voltage: 20.0/3.3/11.0 / - 6.8 V (Typ.) (VDD/AVDD/VGH/VGL)
Used products: vehicle navigation

Distance: 0.0642 (W) x 0.1790 (H)

Note: the above profile information is for reference only, all data will be subject to PDF specification.
