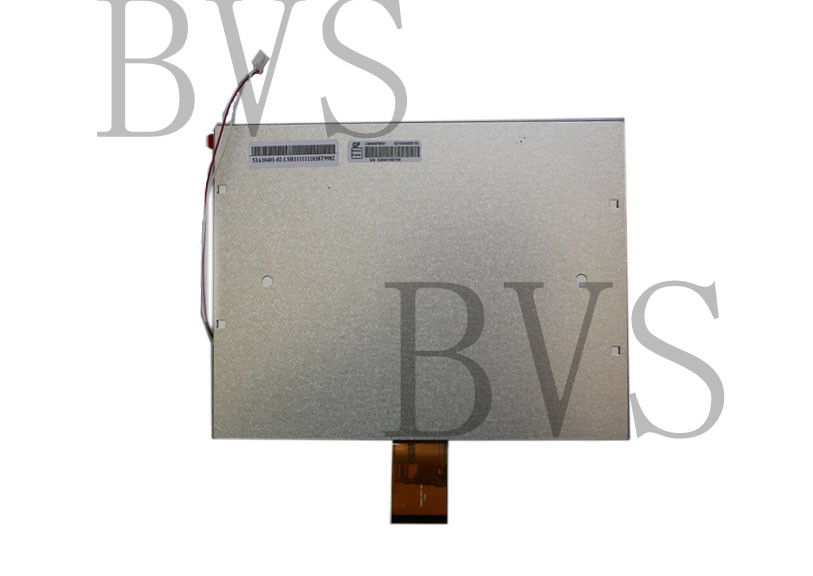

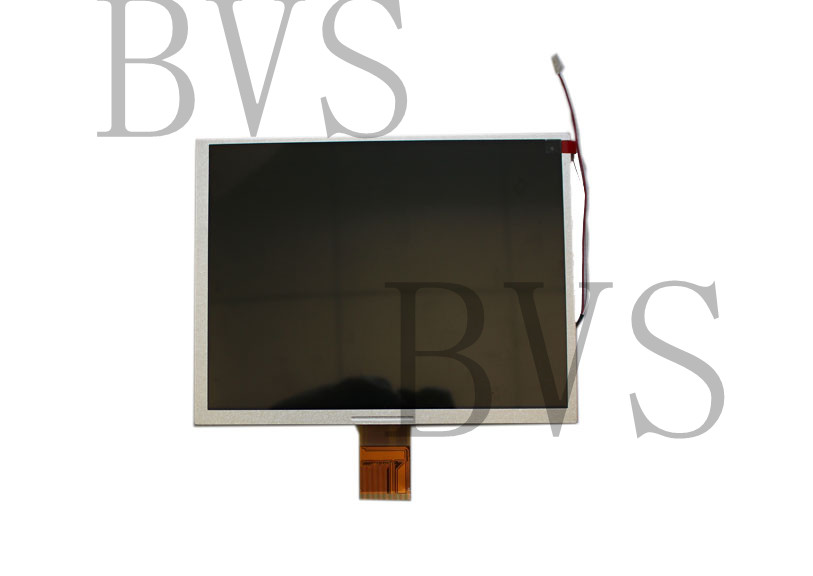

Panel brand: chi mei (CHIMEI INNOLUX)
Panel type: LSA40AT9001
Panel type: a - Si TFT - LCD, the LCD panel
Application products: digital photo frames
Working temperature: - 20 ~ 70 ° C
Storage temperature: - 30 ~ 80 ° C
Panel size: 10.4 inches
Resolution: 800 x 600 (RGB)
Wide high than: 4:3 (wide, high)
Pixel: RGB Vertical Stripe
Point between the distance: 0.088 x 0.264 mm (transverse * vertical)
Pixel distance: 0.264 x 0.264 mm (transverse * vertical)
Panel weight: 390 g
Surface treatment: spray surface, Hard coating (3 h)
Display area: 211.2 x 158.4 mm (transverse * vertical)
Viewing area: 214.2 x 162.5 mm (transverse * vertical)
Appearance of size: 228.4 x 175.4 mm (transverse * vertical)
Appearance of size: 5.9 + / - 0.3 mm (thickness)
Touch the touch screen: no
Display mode: S - IPS, often black, according to the transmission
Panel brightness: 250 CD/m2 (Typ.)
For than degrees: 1400:1 (Typ.) (tem)
Display color: 262 k (6 - bit)
Color saturation: - 1%
Response time: 5.5/10.5 (Typ.) (Tr/Td) (ms)
Visual Angle: 70/70/50/60 (Typ.) (CR 10 or higher) (left/right/up/down)
The best Angle of view: 6 o 'clock
White color: X: 0.310;Y: 0.330
White: 1.25 (Typ.)
Sweep frequency: 60 hz
Reverse scan: No
T - CON: Embedded T - CON
Bulb location: side into the light source
The light source type: WLED
The number of tubes: 3 s12p
Tube shape: array
Light life: 10 k (Min.) (h)
Single lamp voltage:
Single lamp current: 240 ma (Typ.)
Total power tubes: 2.304/2.52 W (Typ. / Max.)
Interface type: Connector
Interface: brand JST
Interface models: BHSR - 02 v - 1
Interface pin pitch: 3.5 mm
The number of interfaces: 1 PCS
Interface foot number: 2 pins
Interface definition: a BLE to 2 pins - CA
Signal forms: the Parallel RGB
Small signal class: an LVDS (2 ch, 8-bit)
The panel voltage:
Panel current: 30/40 ma (Typ.) (ICC/AIDD)
Signal voltage: 0 or less VIL VCC 0.3 or less;0.7 VCC VIH VCC or less or less
Interface type: FPC
Interface pin pitch: 0.5 mm
The number of interfaces: 1 PCS
Interface foot: 60 pins
